ELF Anatomy
ELF is short for Executable and Linkable Format. It's a format used for storing binaries, libraries, and core dumps on disks in Linux and Unix-based systems.
The ELF specification used on Linux for the kernel itself and Linux kernel modules.
ELF Structure
The ELF file is divided into two parts.
1. ELF header (metadata about the file)
$ readelf --help
# -a --all Equivalent to: -h -l -S -s -r -d -V -A -I
# -h --file-header Display the ELF file header
# -l --program-headers Display the program headers
# --segments An alias for --program-headers
# -S --section-headers Display the sections' header
# --sections An alias for --section-headers
# -g --section-groups Display the section groups
# -t --section-details Display the section details
# -e --headers Equivalent to: -h -l -S
# -s --syms Display the symbol table
# --symbols An alias for --syms
# --dyn-syms Display the dynamic symbol table
# --lto-syms Display LTO symbol tables
# --sym-base=[0|8|10|16]
$ readelf -h /bin/ls
# ELF Header:
# Magic: 7f 45 4c 46 02 01 01 00 00 00 00 00 00 00 00 00 <--- file signature
# Class: ELF64 <--- architecture (32-bit, 64-bit)
# Data: 2's complement, little endian <--- data encoding
# Version: 1 (current)
# OS/ABI: UNIX - System V <--- ABI (Application Binary Interface)
# ABI Version: 0
# Type: DYN (Position-Independent Executable file) <--- Executable / Shared Obj / Core File
# Machine: Advanced Micro Devices X86-64 <--- architecture needed for the file.
# Version: 0x1
# Entry point address: 0x6180 <--- EP
# Start of program headers: 64 (bytes into file)
# Start of section headers: 145256 (bytes into file)
# Flags: 0x0
# Size of this header: 64 (bytes) <--- See Hexdump below
# Size of program headers: 56 (bytes)
# Number of program headers: 11
# Size of section headers: 64 (bytes)
# Number of section headers: 30
# Section header string table index: 29
The full ELF header and its values
$ hexdump -C -n 64 /bin/ls
00000000 7f 45 4c 46 02 01 01 00 00 00 00 00 00 00 00 00 |.ELF............|
00000010 03 00 3e 00 01 00 00 00 80 61 00 00 00 00 00 00 |..>......a......|
00000020 40 00 00 00 00 00 00 00 68 37 02 00 00 00 00 00 |@.......h7......|
00000030 00 00 00 00 40 00 38 00 0b 00 40 00 1e 00 1d 00 |....@.8...@.....|
0x3e ==> 62 –> AMDs x86-64 architecture
to view all machine types : elf.h
$ dumpelf /bin/ls
# include <elf.h>
# ...
# ...
# ... alot of stuff here ^^
2. File data
2.1 Program headers Table (Segments)
Program headers table –> stores information about segments –> Each segment is made up of one or more sections.
The kernel uses this information at run time, It tells the kernel how to create the process and map the segments into memory.
To run a program
- the kernel loads the ELF header and the program header table into memory.
- loads the contents that are specified in LOAD in the program header table into memory.
- the control is given to the executable itself or the interpreter if it's available
$ readelf -l /bin/ls
# Program Headers / Segments :
# Type Offset VirtAddr PhysAddr FileSiz MemSiz Flags Align
# PHDR 0x0000000000000040 0x0000000000000040 0x0000000000000040 0x0000000000000268 0x0000000000000268 R 0x8
# INTERP 0x00000000000002a8 0x00000000000002a8 0x00000000000002a8 0x000000000000001c 0x000000000000001c R 0x1
# [Requesting program interpreter: /lib64/ld-linux-x86-64.so.2]
# LOAD 0x0000000000000000 0x0000000000000000 0x0000000000000000 0x0000000000003538 0x0000000000003538 R 0x1000
# LOAD 0x0000000000004000 0x0000000000004000 0x0000000000004000 0x00000000000143c9 0x00000000000143c9 R E 0x1000
# LOAD 0x0000000000019000 0x0000000000019000 0x0000000000019000 0x0000000000008ab8 0x0000000000008ab8 R 0x1000
# LOAD 0x0000000000022350 0x0000000000023350 0x0000000000023350 0x0000000000001278 0x0000000000002568 RW 0x1000
# DYNAMIC 0x0000000000022dd8 0x0000000000023dd8 0x0000000000023dd8 0x00000000000001f0 0x00000000000001f0 RW 0x8
# NOTE 0x00000000000002c4 0x00000000000002c4 0x00000000000002c4 0x0000000000000044 0x0000000000000044 R 0x4
# GNU_EH_FRAME 0x000000000001df0c 0x000000000001df0c 0x000000000001df0c 0x0000000000000944 0x0000000000000944 R 0x4
# GNU_STACK 0x0000000000000000 0x0000000000000000 0x0000000000000000 0x0000000000000000 0x0000000000000000 RW 0x10
# GNU_RELRO 0x0000000000022350 0x0000000000023350 0x0000000000023350 0x0000000000000cb0 0x0000000000000cb0 R 0x1
Program headers are essential when running the executable because they tell the operating system all it needs to know to put the executable into memory and run it.
2.2 Section headers Table (Sections)
Section headers Table –> stores information about sections –> used during dynamic link time, just before the program is executed.
A linker links the binary file with shared libraries that it needs by loading them into memory. The linker’s implementation is specific to the operating system.
$ readelf -S /bin/ls
# Section Headers / Sections :
# [Nr] Name Type Address Offset Size EntSize Flags Link Info Align
# [ 0] NULL 0000000000000000 00000000 0000000000000000 0000000000000000 0 0 0
# [ 1] .interp PROGBITS 00000000000002a8 000002a8 000000000000001c 0000000000000000 A 0 0 1
# [ 2] .note.gnu.bu[...] NOTE 00000000000002c4 000002c4 0000000000000024 0000000000000000 A 0 0 4
# [ 3] .note.ABI-tag NOTE 00000000000002e8 000002e8 0000000000000020 0000000000000000 A 0 0 4
# [ 4] .gnu.hash GNU_HASH 0000000000000308 00000308 00000000000000ac 0000000000000000 A 5 0 8
# [ 5] .dynsym DYNSYM 00000000000003b8 000003b8 0000000000000c00 0000000000000018 A 6 1 8
# [ 6] .dynstr STRTAB 0000000000000fb8 00000fb8 00000000000005c5 0000000000000000 A 0 0 1
# [ 7] .gnu.version VERSYM 000000000000157e 0000157e 0000000000000100 0000000000000002 A 5 0 2
# [ 8] .gnu.version_r VERNEED 0000000000001680 00001680 00000000000000a0 0000000000000000 A 6 2 8
# [ 9] .rela.dyn RELA 0000000000001720 00001720 0000000000001440 0000000000000018 A 5 0 8
# [10] .rela.plt RELA 0000000000002b60 00002b60 00000000000009d8 0000000000000018 AI 5 24 8
# [11] .init PROGBITS 0000000000004000 00004000 0000000000000017 0000000000000000 AX 0 0 4
# [12] .plt PROGBITS 0000000000004020 00004020 00000000000006a0 0000000000000010 AX 0 0 16
# [13] .plt.got PROGBITS 00000000000046c0 000046c0 0000000000000018 0000000000000008 AX 0 0 8
# [14] .text PROGBITS 00000000000046e0 000046e0 0000000000013cde 0000000000000000 AX 0 0 16
# [15] .fini PROGBITS 00000000000183c0 000183c0 0000000000000009 0000000000000000 AX 0 0 4
# [16] .rodata PROGBITS 0000000000019000 00019000 0000000000004f09 0000000000000000 A 0 0 32
# [17] .eh_frame_hdr PROGBITS 000000000001df0c 0001df0c 0000000000000944 0000000000000000 A 0 0 4
# [18] .eh_frame PROGBITS 000000000001e850 0001e850 0000000000003268 0000000000000000 A 0 0 8
# [19] .init_array INIT_ARRAY 0000000000023350 00022350 0000000000000008 0000000000000008 WA 0 0 8
# [20] .fini_array FINI_ARRAY 0000000000023358 00022358 0000000000000008 0000000000000008 WA 0 0 8
# [21] .data.rel.ro PROGBITS 0000000000023360 00022360 0000000000000a78 0000000000000000 WA 0 0 32
# [22] .dynamic DYNAMIC 0000000000023dd8 00022dd8 00000000000001f0 0000000000000010 WA 6 0 8
# [23] .got PROGBITS 0000000000023fc8 00022fc8 0000000000000038 0000000000000008 WA 0 0 8
# [24] .got.plt PROGBITS 0000000000024000 00023000 0000000000000360 0000000000000008 WA 0 0 8
# [25] .data PROGBITS 0000000000024360 00023360 0000000000000268 0000000000000000 WA 0 0 32
# [26] .bss NOBITS 00000000000245e0 000235c8 00000000000012d8 0000000000000000 WA 0 0 32
# [27] .gnu_debugaltlink PROGBITS 0000000000000000 000235c8 0000000000000049 0000000000000000 0 0 1
# [28] .gnu_debuglink PROGBITS 0000000000000000 00023614 0000000000000034 0000000000000000 0 0 4
# [29] .shstrtab STRTAB 0000000000000000 00023648 000000000000011c 0000000000000000 0 0 1
W (write), A (alloc), X (execute), I (info)
.init Section that contains code that is executed when a program is loaded into memory. Specifically, it contains the initialization code that sets up the runtime environment for the program.
.note Section contains note information.
.text Section contains executable text/instructions/functions. (AX)
global variables and the rodata section that usually contains constant strings.
.bss Section contains uninitialized read-write data/global varaibles. (WA)
.data Section contains initialized read-write data/global varaibles. (WA)
.rodata Section contains initialized read-only data (A)
these sections (.data & .rodata) contain the actual, initialized data, which the program will need in memory. The memory reserves more space for the data segment than specified in the ELF file to make room for uninitialized variables.
Ex
// sections.c
// gcc sections.c -o sections
#include<stdio.h>
int GLOBAL = 0xdeadbeef; // Initialized --> .data
int GLOBAL2; // UnInitialized --> .bss
char* string; // UnInitialized --> .bss
char* string2 = "HIIOOO"; // Constant String --> .rodata
// string2 --> .data
int main(){
char *string3 = "Hello World!!"; // Constant String --> .rodata
// string3 --> stack
return 0;
}
pwndbg> b *main
# Breakpoint 1 at 0x1129
pwndbg> r
# Starting program: /home/o54ma/exploit-exercises-protostar-2/ELF/sections
# [Thread debugging using libthread_db enabled]
# Using host libthread_db library "/lib/x86_64-linux-gnu/libthread_db.so.1"
# Breakpoint 1, 0x0000555555555129 in main ()

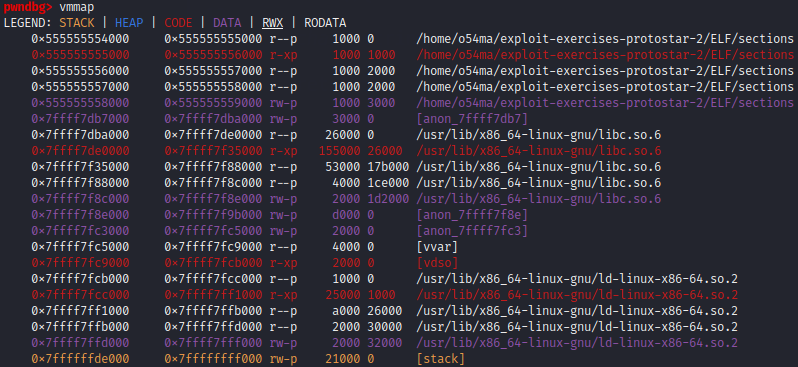

pwndbg> vmmap
pwndbg> info file
pwndbg> info files
Symbols from "/home/o54ma/exploit-exercises-protostar-2/ELF/sections".
Native process:
Using the running image of child Thread 0x7ffff7db7740 (LWP 34936).
While running this, GDB does not access memory from...
Local exec file:
`/home/o54ma/exploit-exercises-protostar-2/ELF/sections', file type elf64-x86-64.
Entry point: 0x555555555040
0x0000555555554318 - 0x0000555555554334 is .interp
0x0000555555554338 - 0x0000555555554358 is .note.gnu.property
0x0000555555554358 - 0x000055555555437c is .note.gnu.build-id
0x000055555555437c - 0x000055555555439c is .note.ABI-tag
0x00005555555543a0 - 0x00005555555543c4 is .gnu.hash
0x00005555555543c8 - 0x0000555555554458 is .dynsym
0x0000555555554458 - 0x00005555555544e0 is .dynstr
0x00005555555544e0 - 0x00005555555544ec is .gnu.version
0x00005555555544f0 - 0x0000555555554520 is .gnu.version_r
0x0000555555554520 - 0x00005555555545f8 is .rela.dyn
0x0000555555555000 - 0x0000555555555017 is .init
0x0000555555555020 - 0x0000555555555030 is .plt
0x0000555555555030 - 0x0000555555555038 is .plt.got
0x0000555555555040 - 0x000055555555513f is .text
0x0000555555555140 - 0x0000555555555149 is .fini
0x0000555555556000 - 0x0000555555556019 is .rodata
0x000055555555601c - 0x0000555555556048 is .eh_frame_hdr
0x0000555555556048 - 0x00005555555560f4 is .eh_frame
0x0000555555557e00 - 0x0000555555557e08 is .init_array
0x0000555555557e08 - 0x0000555555557e10 is .fini_array
0x0000555555557e10 - 0x0000555555557fc0 is .dynamic
0x0000555555557fc0 - 0x0000555555557fe8 is .got
0x0000555555557fe8 - 0x0000555555558000 is .got.plt
0x0000555555558000 - 0x0000555555558020 is .data
0x0000555555558020 - 0x0000555555558038 is .bss
.init
pwndbg> disass 0x0000555555555000
0x555555555000 <_init> sub rsp, 8
0x555555555004 <_init+4> mov rax, qword ptr [rip + 0x2fc5]
0x55555555500b <_init+11> test rax, rax
0x55555555500e <_init+14> je _init+18 <_init+18>
↓
0x555555555012 <_init+18> add rsp, 8
0x555555555016 <_init+22> ret
↓
0x7ffff7de126c <__libc_start_main+172> mov rdi, qword ptr [r14 + 0x108]
0x7ffff7de1273 <__libc_start_main+179> test rdi, rdi
0x7ffff7de1276 <__libc_start_main+182> je __libc_start_main+102 <__libc_start_main+102>
...
...
...
► 0x7ffff7de1240 <__libc_start_main+128> call __libc_start_call_main <__libc_start_call_main>
// rdi: 0x555555555129 (main) ◂— push rbp
// rsi: 0x1
// rdx: 0x7fffffffdfa8 —▸ 0x7fffffffe2f0 ◂— '/home/o54ma/exploit-exercises-protostar-2/ELF/sections'
↓
0x555555555129 <main> push rbp
0x55555555512a <main+1> mov rbp, rsp
0x55555555512d <main+4> lea rax, [rip + 0xed7]
0x555555555134 <main+11> mov qword ptr [rbp - 8], rax
0x555555555138 <main+15> mov eax, 0
0x55555555513d <main+20> pop rbp
0x55555555513e <main+21> ret
.rodata
pwndbg> x/5s 0x0000555555556000
0x555555556000 <_IO_stdin_used>: "\001"
0x555555556002 <_IO_stdin_used+2>: "\002"
0x555555556004: "HIIOOO"
0x55555555600b: "Hello World!!"
0x555555556019: ""
.data
pwndbg> x/100xb 0x0000555555558000
0x555555558000: 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00
0x555555558008: 0x08 0x80 0x55 0x55 0x55 0x55 0x00 0x00
0x555555558010 <GLOBAL>: 0xef 0xbe 0xad 0xde 0x00 0x00 0x00 0x00
0x555555558018 <string2>: 0x04 0x60 0x55 0x55 0x55 0x55 0x00 0x00
string2 pointing at 0x555555556004 in .rodata
.bss
pwndbg> x/100x 0x0000555555558020
0x555555558020 <completed.0>: 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00
0x555555558028 <GLOBAL2>: 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00
0x555555558030 <string>: 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00
Static versus Dynamic binaries
static binaries include all the libraries needed to run the program, while dynamic binaries use shared libraries that are loaded at runtime. The choice between static and dynamic linking depends on factors such as portability, size of the resulting binary, and ease of updating the libraries.
$ file /bin/ls
# /bin/ls: ELF 64-bit LSB pie executable, x86-64, version 1 (SYSV), dynamically linked, interpreter /lib64/ld-linux-x86-64.so.2, BuildID[sha1]=6e3da6f0bc36b6398b8651bbc2e08831a21a90da, for GNU/Linux 3.2.0, stripped
$ gcc -o myprogram myprogram.c # compiled dynamically by default
$ gcc -static -o myprogram myprogram.c # compiled statically
to list the external libraries used by the binary.
$ ldd /bin/ls
# linux-vdso.so.1 (0x00007fff6ed3e000)
# libselinux.so.1 => /lib/x86_64-linux-gnu/libselinux.so.1 (0x00007f82f75c9000)
# libc.so.6 => /lib/x86_64-linux-gnu/libc.so.6 (0x00007f82f73e8000)
# libpcre2-8.so.0 => /lib/x86_64-linux-gnu/libpcre2-8.so.0 (0x00007f82f734e000)
# /lib64/ld-linux-x86-64.so.2 (0x00007f82f7647000)
PLT and GOT - the key to code sharing and dynamic libraries
they are a data structures used for dynamic linking of shared libraries.
PLT (Procedure Linkage Table) : used to call external procedures/functions whose address isn't known in the time of linking, and is left to be resolved by the dynamic linker at run time.
GOT (Global Offset Table) : holds addresses of functions that are dynamically linked.
relocations are entries in binaries that are left to be filled in later –> at link time by the toolchain linker or at runtime by the dynamic linker
In Linux, dynamic linking is performed by a dynamic linker program, which is responsible for locating and loading the shared libraries into memory. When an executable program is loaded, the dynamic linker reads a special section in the executable file called the dynamic section, which contains information about the shared libraries that the program depends on.
such as :
-
.dynamic: This section contains information about the dynamic linker, such as its name and version, and the libraries that the program depends on. -
.got: This section contains the global offset table, which is used by the dynamic linker to resolve symbols at runtime. -
.plt: This section contains the procedure linkage table, which is used by the dynamic linker to jump to shared library functions. -
.rel.dyn: This section contains relocation information for symbols that are defined in shared libraries. -
.rel.plt: This section contains relocation information for symbols that are used by the program but defined in shared libraries.
The dynamic linker then searches for the required shared libraries and loads them into memory. Once loaded, the shared libraries can be used by the program. If a shared library is not found, the dynamic linker will report an error and the program will not be executed.
the .got and .plt sections are the standard data structures used in dynamic linking. The .got.plt and .plt.got sections are variants that are used in some systems to optimize dynamic linking. The difference between them is in the way they combine entries from the GOT and PLT to optimize the dynamic linking process.
How puts function called dynamically
# ┌──────┐
# │ puts │
# └─▲──▲─┘
# │ │
# the rest of the time │ │
# ────────────────────────────┘ │
# │
# ┌──────────┐ .plt ┌──────────┴────────┐ .plt ┌─────────────────────────────────┐
# │ puts@plt ├────────────►│jmp [puts@got.plt] ├────────────►│jmp <_dl_runtime_resolve_xsave> │
# └──────────┘ └──────────▲────────┘ └────────────────┬────────────────┘
# │ │
# │ │
# │ │
# │ just the first time │
# └───────────────────────────────────────┘
# the GOT table updated
Ex
#include<stdio.h>
int main(){
puts("Hello World!!");
puts("Bye!!");
return 0;
}
pwndbg> b *main
pwndbg> r
pwndbg> disass main
Dump of assembler code for function main:
=> 0x0000555555555139 <+0>: push rbp
0x000055555555513a <+1>: mov rbp,rsp
0x000055555555513d <+4>: lea rax,[rip+0xec0] # 0x555555556004
0x0000555555555144 <+11>: mov rdi,rax
0x0000555555555147 <+14>: call 0x555555555030 <puts@plt>
0x000055555555514c <+19>: lea rax,[rip+0xebf] # 0x555555556012
0x0000555555555153 <+26>: mov rdi,rax
0x0000555555555156 <+29>: call 0x555555555030 <puts@plt>
0x000055555555515b <+34>: mov eax,0x0
0x0000555555555160 <+39>: pop rbp
0x0000555555555161 <+40>: ret
End of assembler dump.
//---------------------------------------------------------------------------------
pwndbg> info files
Entry point: 0x555555555050
0x0000555555554318 - 0x0000555555554334 is .interp
...
...
0x0000555555555020 - 0x0000555555555040 is .plt
0x0000555555555040 - 0x0000555555555048 is .plt.got
0x0000555555555050 - 0x0000555555555162 is .text
0x0000555555555164 - 0x000055555555516d is .fini
0x0000555555556000 - 0x0000555555556018 is .rodata
....
....
0x0000555555557fc0 - 0x0000555555557fe8 is .got
0x0000555555557fe8 - 0x0000555555558008 is .got.plt
0x0000555555558008 - 0x0000555555558018 is .data
0x0000555555558018 - 0x0000555555558020 is .bss
pwndbg> ni 4
0x555555555139 <main> push rbp
0x55555555513a <main+1> mov rbp, rsp
0x55555555513d <main+4> lea rax, [rip + 0xec0]
0x555555555144 <main+11> mov rdi, rax
► 0x555555555147 <main+14> call puts@plt <puts@plt> // Next instruction to be executed !!
// s: 0x555555556004 ◂— 'Hello World!!'
//---------------------------------------------------------------------------------
pwndbg> si
► 0x555555555030 <puts@plt> jmp qword ptr [rip + 0x2fca] <puts@got[plt]>
0x555555555036 <puts@plt+6> push 0
0x55555555503b <puts@plt+11> jmp 0x555555555020 <0x555555555020>
↓
0x555555555020 push qword ptr [rip + 0x2fca] <_GLOBAL_OFFSET_TABLE_+8>
0x555555555026 jmp qword ptr [rip + 0x2fcc] <_dl_runtime_resolve_xsave>
↓
0x7ffff7fdd150 <_dl_runtime_resolve_xsave> push rbx
// rip + 0x2fca ===> puts@got.plt ===> puts@plt+6 (in the first time)
// keep stepping into, and you will end up calling the linker !!
// now the seccond puts call in main
0x555555555139 <main> push rbp
0x55555555513a <main+1> mov rbp, rsp
0x55555555513d <main+4> lea rax, [rip + 0xec0]
0x555555555144 <main+11> mov rdi, rax
0x555555555147 <main+14> call puts@plt <puts@plt>
0x55555555514c <main+19> lea rax, [rip + 0xebf]
0x555555555153 <main+26> mov rdi, rax
► 0x555555555156 <main+29> call puts@plt <puts@plt>
0x55555555515b <main+34> mov eax, 0
0x555555555160 <main+39> pop rbp
0x555555555161 <main+40> ret
//---------------------------------------------------------------------------------
pwndbg> si
► 0x555555555030 <puts@plt> jmp qword ptr [rip + 0x2fca] <puts>
↓
0x7ffff7e31820 <puts> push r14
0x7ffff7e31822 <puts+2> push r13
0x7ffff7e31824 <puts+4> push r12
0x7ffff7e31826 <puts+6> mov r12, rdi
// rip + 0x2fca ===> puts@got.plt ===> puts
ELF Security
1. Stripping
the process of reducing the size of a binary by removing some of the debugging and symbol information that is typically included in the binary during the linking process.
it can also have security implications, since it can make it more difficult to analyze or debug the binary.
The symbol table
The symbol table contains information about the symbols defined in the binary, including function and variable names, their memory addresses, and other attributes.
#include<stdio.h>
int fun1(){
return 0;
}
void fun2(){
puts("Hi");
}
int main(){
return 0;
}
$ gcc symbols.c -o symbols
$ file symbols
# symbols: ELF 64-bit LSB pie executable, x86-64, version 1 (SYSV), dynamically linked, interpreter /lib64/ld-linux-x86-64.so.2, BuildID[sha1]=f35a2f312de31cd75205536eb0d353b0d07db98e, for GNU/Linux 3.2.0, not stripped
$ nm symbols | grep " T "
# 0000000000001168 T _fini
# 0000000000001139 T fun1
# 0000000000001144 T fun2
# 0000000000001000 T _init
# 000000000000115a T main
# 0000000000001050 T _start
$ nm symbols | grep " U "
# U __libc_start_main@GLIBC_2.34
# U puts@GLIBC_2.2.5
# T : The symbol is in the text (code) section.
# U : The symbol is undefined.
$ strip symbols
# OR
$ gcc symbols.c -o symbols -s
$ file symbols
# symbols: ELF 64-bit LSB pie executable, x86-64, version 1 (SYSV), dynamically linked, interpreter /lib64/ld-linux-x86-64.so.2, BuildID[sha1]=f35a2f312de31cd75205536eb0d353b0d07db98e, for GNU/Linux 3.2.0, stripped
$ nm symbols
# nm: symbols: no symbols
How to find the main function address on gdb ?? (stripped binary)
pwndbg> b *main
// No symbol table is loaded. Use the "file" command.
pwndbg> b _start
// Function "_start" not defined.
pwndbg> b __libc_start_main
// Function "__libc_start_main" not defined.
// -------------------------------------------------------
// Just Try to run it normally in the first time
pwndbg> r
// [Inferior 1 (process 13270) exited normally]
pwndbg> b __libc_start_main // __libc_start_main --> will be defined after that by the debugger
pwndbg> r
// Breakpoint 1, __libc_start_main_impl(main=0x555555400920, argc=1, argv=0x7fffffffdef8, init=0x555555400ba0, fini=0x555555400c10, rtld_fini=0x7ffff7fceaa0 <_dl_fini>,stack_end=0x7fffffffdee8) at ../csu/libc-start.c:340
// -------------------------------------------------------
main=0x555555400920 is the addr of the main ^^
2. FULL RELRO vs. Partial RELRO
RELRO is a generic exploit mitigation technique to harden the data sections of an ELF binary or process.
From an attackers point-of-view, partial RELRO makes almost no difference, other than it forces the GOT to come before the BSS in memory,
eliminating the risk of a buffer overflows on a global variable overwriting GOT.
Full RELRO makes the entire GOT read-only which removes the ability to perform a "GOT overwrite" attack
// main.c
#include<stdio.h>
int main(){
printf("Hello World\n");
return 0;
}
$ gcc main.c -o main // Partial RELRO
$ r2 main
[0x00001050]> iS
[Sections]
nth paddr size vaddr vsize perm name
―――――――――――――――――――――――――――――――――――――――――――――――――
0 0x00000000 0x0 0x00000000 0x0 ----
...
...
13 0x00001020 0x20 0x00001020 0x20 -r-x .plt // .plt
14 0x00001040 0x8 0x00001040 0x8 -r-x .plt.got // .plt.got
15 0x00001050 0x103 0x00001050 0x103 -r-x .text // .text
...
...
23 0x00002fc0 0x28 0x00003fc0 0x28 -rw- .got // .got it's writable
24 0x00002fe8 0x20 0x00003fe8 0x20 -rw- .got.plt // .got.plt it's writable
25 0x00003008 0x10 0x00004008 0x10 -rw- .data // .data it's writable
26 0x00003018 0x0 0x00004018 0x8 -rw- .bss // .bss it's writable
...
...
$ gcc main.c -o main -Wl,-z,relro,-z,now // FULL RELRO
$ r2 main
[0x00001050]> iS
[Sections]
nth paddr size vaddr vsize perm name
―――――――――――――――――――――――――――――――――――――――――――――――――
0 0x00000000 0x0 0x00000000 0x0 ----
...
...
13 0x00001020 0x20 0x00001020 0x20 -r-x .plt // .plt
14 0x00001040 0x8 0x00001040 0x8 -r-x .plt.got // .plt.got
15 0x00001050 0x103 0x00001050 0x103 -r-x .text // .text
...
...
23 0x00002fc0 0x28 0x00003fc0 0x28 -rw- .got // .got it's writable
24 0x00002fe8 0x20 0x00003fe8 0x20 -rw- .got.plt // .got.plt it's writable
25 0x00003008 0x10 0x00004008 0x10 -rw- .data // .data it's writable
26 0x00003018 0x0 0x00004018 0x8 -rw- .bss // .bss it's writable
...
...
#include <stdio.h>
#include <stdlib.h>
#include <string.h>
int main(int argc, int *argv[])
{
// puts("adding the puts function in GOT table");
// printf("Address of GOT: %p\n", &puts);
// size_t *p = (size_t *) strtol(argv[1], NULL, 10);
// int (*p2)(const char *s) = puts;
// p[0] = p2;
// p2("HII");
// printf("RELRO: %p\n", p);
void *main_addr = (void *)(&main - 0x149);
printf("The address of _init is: %p\n", main_addr);
void *puts_got_addr = (void *)(main_addr + 0x3000);
printf("The address of puts@got is: %p\n", puts_got_addr);
puts("HI");
// memcpy(puts_got_addr, &puts, 8);
return 0;
}
Find glibc version
The GNU C Library project provides the core libraries for the GNU system and GNU/Linux systems, as well as many other systems that use Linux as the kernel.
So if you managed to know the ubuntu version the binary is running on. you could find the libc versoin that the binary uses, which could help in revealing some exploits
some ctf challenges provide a Dockerfile, which could tell the version of ubuntu used.
# if you were givin the shared libc file that the binary use. you can find it's version like this.
$ strings ./libc.so.6 | grep ubuntu
GNU C Library (Ubuntu GLIBC 2.27-3ubuntu1.2) stable release version 2.27.
<https://bugs.launchpad.net/ubuntu/+source/glibc/+bugs>.
# To find glibc version on your system
$ ldd --version
Patch the binary !!
patching ELF binaries to use specific versions of glibc with pwninit :
$ tree
.
└── Folder
├── binary
└── libc.so.6
$ cd Folder
$ pwninit
$ tree
.
└── Folder
├── binary
├── binary_patched
├── ld-2.27.so
└── libc.so.6
what pwninit did ??
- Downloaded a linker (ld-linux.so.*) that can segfaultlessly load the provided libc
- Downloaded debug symbols and unstrip the libc
- Patched the binary with patchelf to use the correct RPATH and interpreter for the provided libc
# after pwninit, you can run patchelf on the non-patched binary to patch it ^^
$ patchelf --set-interpreter ./ld-2.27.so ./binary
CheckSec
$ checksec binary
[*] '/tmp/a.out'
Arch: amd64-64-little
RELRO: Partial RELRO
Stack: No canary found
NX: NX enabled
PIE: PIE enabled
PIE vs. ASLR
Address Space Layout Randomisation (ASLR), every time you run a binary, libc (and other libraries) get loaded into a different memory address.
simply it randomizes everything in the proccess except hte code section
Position Independent Executable (PIE), randomizes the code & data sections at runtime, like main address and other functions addresses.
a table comparing the ELF sections that are affected by PIE and ASLR mitigation techniques: (NOT SURE !!)
ELF Section PIE ASLR
.text Yes Yes
.data Yes Yes
.bss Yes Yes
.got Yes No
.dynamic Yes No
.plt Yes No
.rel Yes No
.symtab Yes No
.rodata No Yes
The main difference is that PIE can be compiled into the binary while the presence of ASLR is completely dependant on the environment running the binary.
But anyway, ASLR is enabled by PIE, but PIE is a thing even with ASLR disabled.
to Disable ASLR on your system : (Do it everytime the system restarted) ```bash $ sudo bash -c "echo 0 > /proc/sys/kernel/randomize_va_space"
$ # sudo bash -c "echo 2 > /proc/sys/fs/suid_dumpable" ?? ```
NX / DEP
Data Execution Prevention (DEP) or No-Execute (NX), When this option is enabled, it works with the processor to help prevent buffer overflow attacks by blocking code execution from memory that is marked as non-executable.
Stack Canaries
One way to prevent the stack-based buffer overflow, it's a secret value placed on the stack which changes every time the program is started. Prior to a function return,
the stack canary is checked and if it appears to be modified, the program exits immeadiately.
GOT & PLT
Global Offset Table (GOT)
Phy vs. Virt Addresses
$ pmap
Ghidra
References
- https://www.baeldung.com/linux/executable-and-linkable-format-file
- https://linux-audit.com/elf-binaries-on-linux-understanding-and-analysis/
- https://www.technovelty.org/linux/plt-and-got-the-key-to-code-sharing-and-dynamic-libraries.html
